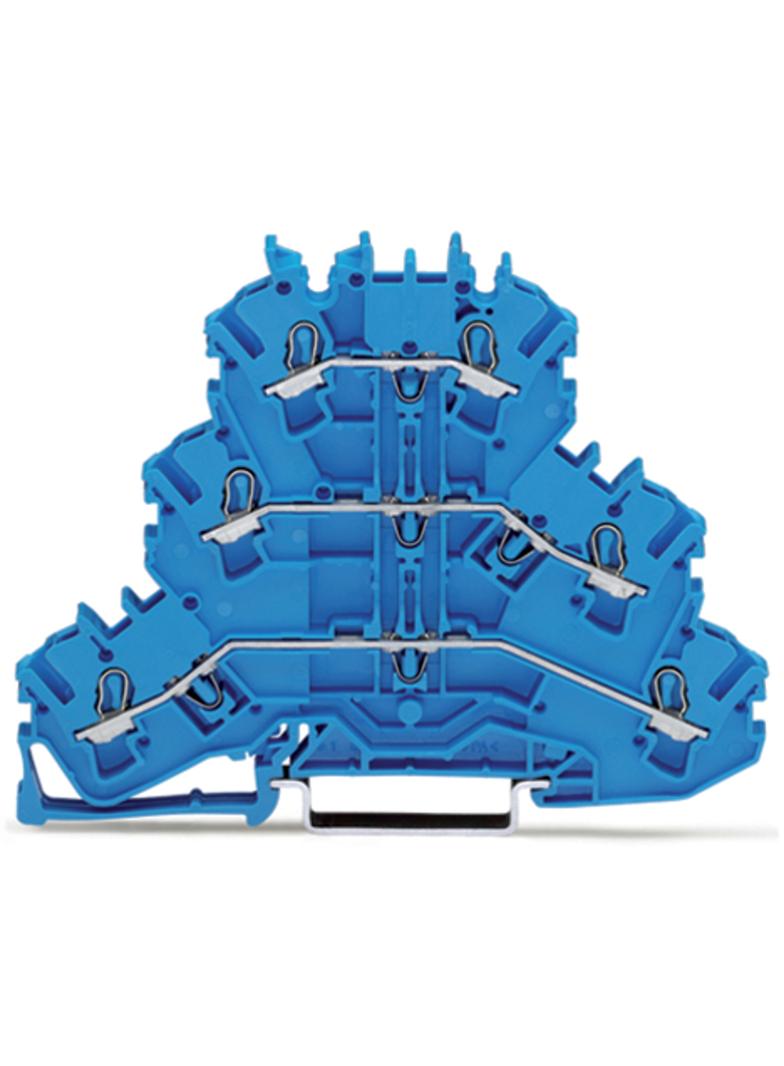

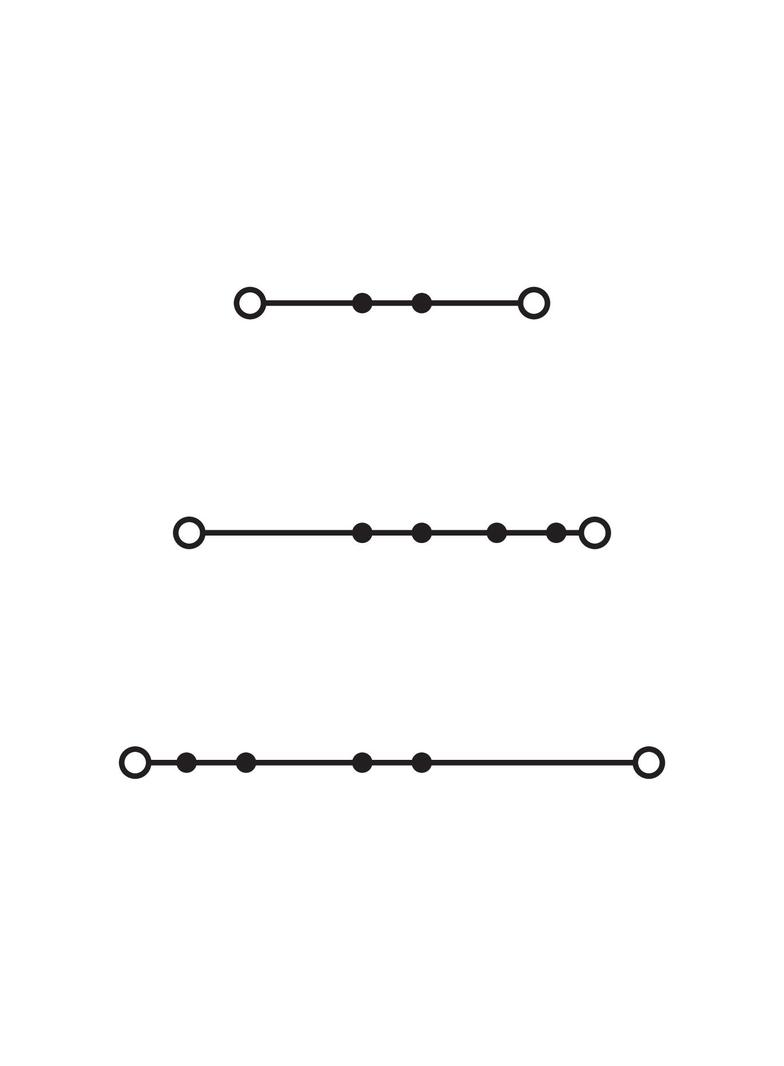

złączka 3-piętrowa; złączka przelotowa/przelotowa/przelotowa; N/N/N; bez podstawki oznacznika; do zastosowań Ex e II oraz Ex i; na szynę TS 35 × 15 i 35 × 7,5; 2,5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; niebieski
Kraj pochodzenia:
Niemcy
Numer katalogowy:
2002-3204
ETIM:
EC000897
Prąd znamionowy In:
24A
Przekrój przyłączanego przewodu wielożyłowego:
0.25mm² - 2.5mm²
Przekrój przyłączanego przewodu jednodrutowego:
0.75mm² - 4mm²
Przekrój przyłączanego przewodu linkowego z końcówką tulejkową:
0.75mm² - 2.5mm²
Przekrój przyłączanego przewodu linkowego bez końcówki tulejkowej:
0.25mm² - 4mm²
Napięcie znamionowe:
500V
Wewnętrzne piętra zmostkowane:
Nie
Wymagana płytka zamykająca:
Tak
Wykonanie przeciwwybuchowe Ex-e - potwierdzone:
Tak
Głębokość:
81.3mm
Wysokość:
93.3mm
Szerokość:
5.2mm
Zakres temperatur pracy:
105°C - 105°C
Materiał elementu izolacyjnego:
Tworzywo termoplastyczne
Liczba zacisków na poziom:
2
Liczba poziomów:
3
Rodzaj połączenia elektrycznego 2:
Zacisk sprężynowy
Rodzaj połączenia elektrycznego 1:
Zacisk sprężynowy
Kolor:
Szary
Sposób montażu:
Szyna montażowa DIN TH-35 mm
Klasa palności materiału izolacyjnego zgodnie z UL94:
