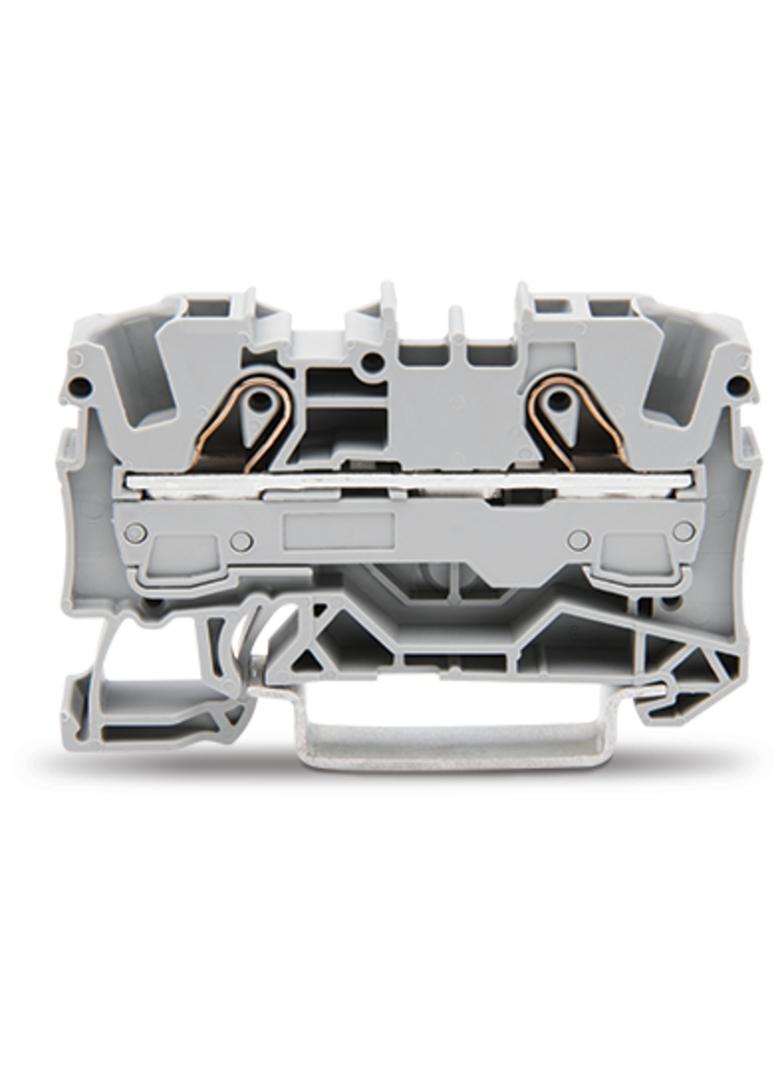

złączka przelotowa 2-przewodowa; 6 mm²; do zastosowań Ex e II; opis z boku i na środku; na szynę TS 35 × 15 i 35 × 7,5; Push-in CAGE CLAMP®; 6,00 mm²; szary
Kraj pochodzenia:
Niemcy
Numer katalogowy:
2006-1201
ETIM:
EC000897
Prąd znamionowy In:
41A
Przekrój przyłączanego przewodu wielożyłowego:
0.5mm² - 6mm²
Przekrój przyłączanego przewodu jednodrutowego:
1mm² - 10mm²
Przekrój przyłączanego przewodu linkowego z końcówką tulejkową:
1.5mm² - 6mm²
Przekrój przyłączanego przewodu linkowego bez końcówki tulejkowej:
0.5mm² - 10mm²
Napięcie znamionowe:
800V
Wewnętrzne piętra zmostkowane:
Nie
Wymagana płytka zamykająca:
Tak
Wykonanie przeciwwybuchowe Ex-e - potwierdzone:
Tak
Głębokość:
32.9mm
Wysokość:
57.4mm
Szerokość:
7.5mm
Zakres temperatur pracy:
105°C - 105°C
Materiał elementu izolacyjnego:
Tworzywo termoplastyczne
Liczba zacisków na poziom:
2
Liczba poziomów:
1
Rodzaj połączenia elektrycznego 2:
Zacisk sprężynowy
Rodzaj połączenia elektrycznego 1:
Zacisk sprężynowy
Kolor:
Szary
Sposób montażu:
Szyna montażowa DIN TH-35 mm
Klasa palności materiału izolacyjnego zgodnie z UL94:
