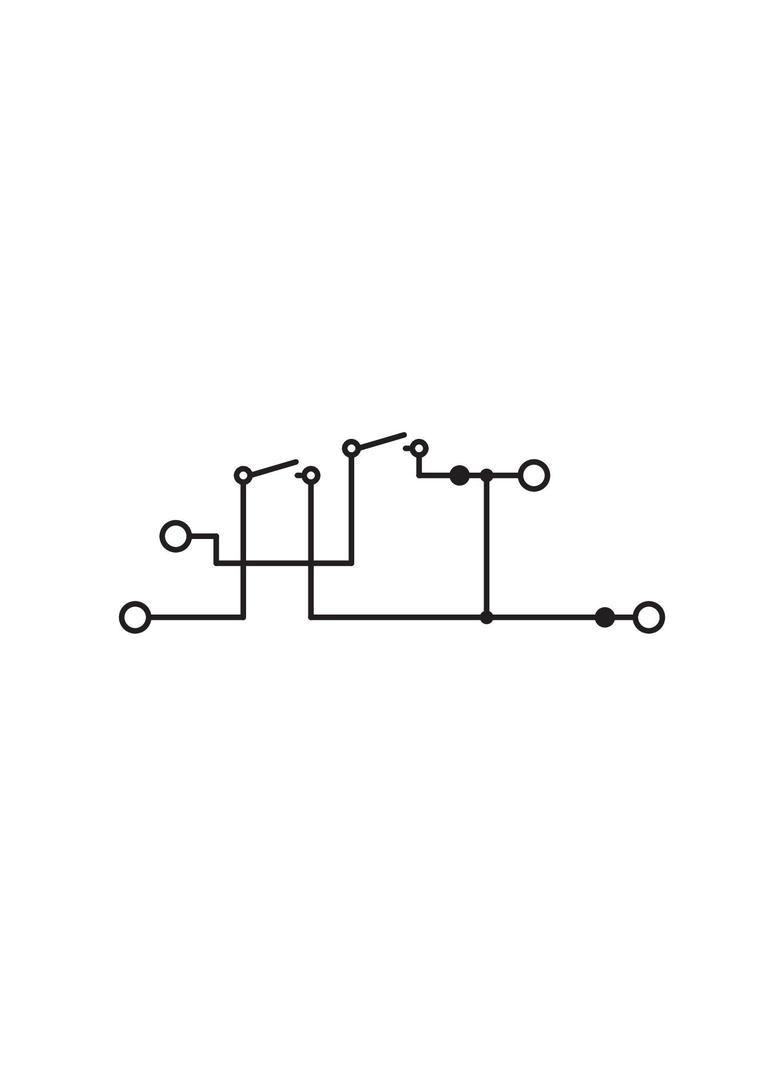

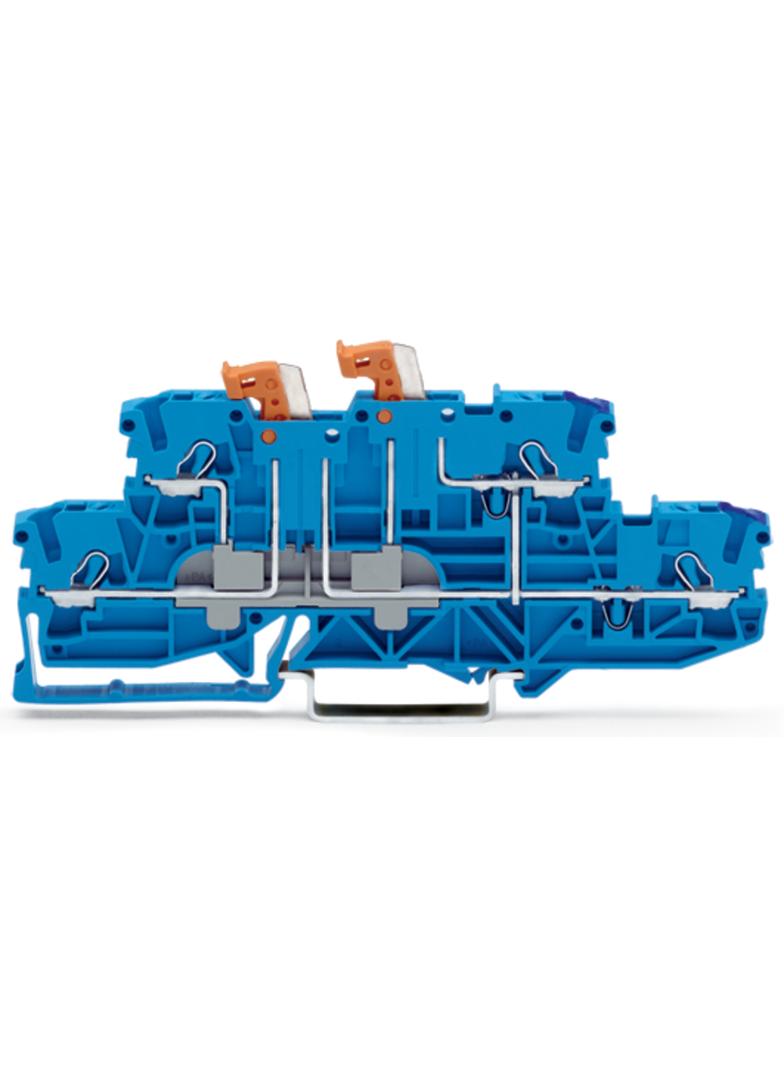

złączka rozłączalna podwójna 2-piętrowa; z 2 nożami rozłączającymi; oba piętra mostkowane wewnętrznie po prawej stronie; do zastosowań Ex i; otwory na przewody z fiolet. nadrukiem; na szynę TS 35 × 15 i 35 × 7,5; 2,5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; niebieski
Sposób montażu:
Szyna montażowa DIN TH-35 mm
Kraj pochodzenia:
Chiny
ETIM:
EC000902
Numer katalogowy:
2002-2959
Z wbudowanym gniazdem testowym:
Nie
Rodzaj separacji poprzecznej:
Brak
Rodzaj separacji wzdłużnej:
Brak
Kolor:
Niebieski
Wymagana płytka zamykająca:
Tak
Głębokość:
42mm
Wysokość:
108mm
Szerokość:
5.2mm
Zakres temperatur pracy:
105°C - 105°C
Materiał elementu izolacyjnego:
Tworzywo termoplastyczne
Wewnętrzne piętra zmostkowane:
Nie
Liczba zacisków na poziom:
2
Liczba poziomów:
2
Rodzaj połączenia elektrycznego 2:
Zacisk sprężynowy
Rodzaj połączenia elektrycznego 1:
Zacisk sprężynowy
Napięcie znamionowe:
400V
Prąd znamionowy In:
16A
Przekrój przyłączanego przewodu wielożyłowego:
0.25mm² - 2.5mm²
Przekrój przyłączanego przewodu jednodrutowego:
0.75mm² - 4mm²
Przekrój przyłączanego przewodu linkowego z końcówką tulejkową:
0.75mm² - 2.5mm²
Przekrój przyłączanego przewodu linkowego bez końcówki tulejkowej:
0.25mm² - 4mm²
Klasa palności materiału izolacyjnego zgodnie z UL94:
