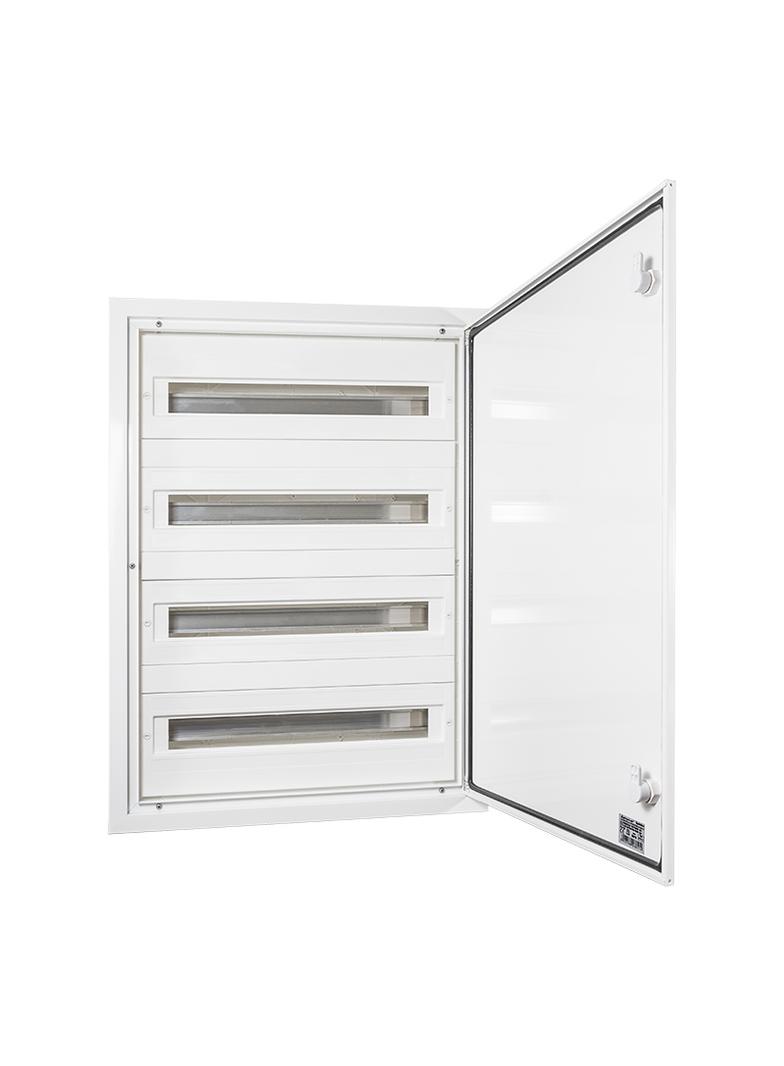

Rozdzielnica podtynkowa 4x24 IP54 DARP-96 drzwu alum. biały 9.424 OPATÓWEK

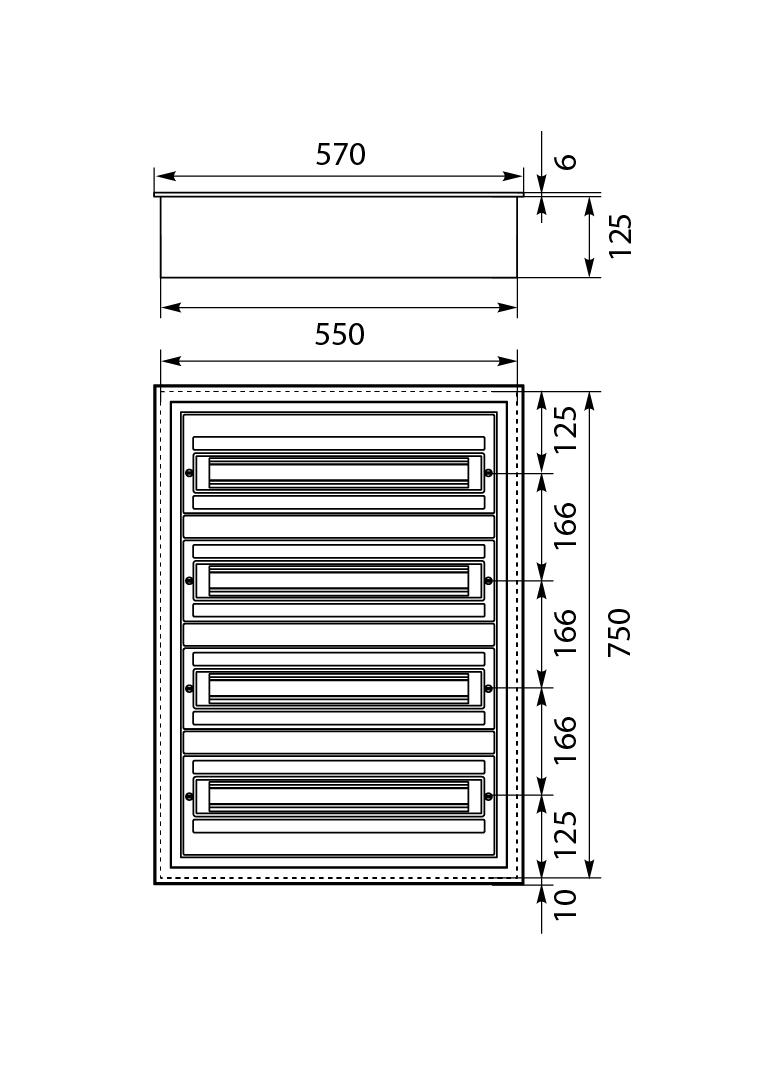

The optimal depth of 125mm perfectly fits the needs of residential, commercial, and industrial buildings. The range includes five distribution boards, with 2, 3, 4, 5, 6, and 7 rows (up to 24 modules per row), providing space for up to 168 modules. Of particular note are the removable aluminum TH rails (on sleds), which provide 29mm of clearance for cable routing. Insulated N+PE busbars, which are easily accessible, enhance functionality and safety. Aluminum frames, doors, a support structure with TH35 rails, and even stainless steel screws ensure high durability and aesthetics. The base and covers are made of high-quality polystyrene. Adjustable frames allow for adaptation to various plaster thicknesses, and cast-in seals provide an IP54 protection rating. The entire unit is painted white (RAL 9010). DARP QUITELINE switchboards are rated Class II for protection and IK07 impact resistance. The kit includes installation instructions and circuit description cards. Optional accessories include metal locks (individual or repeatable) and a plastic triangle lock. The switchboards meet the requirements of the PN-EN 62208:2011 standard. The maximum permissible rated current is 125A.
