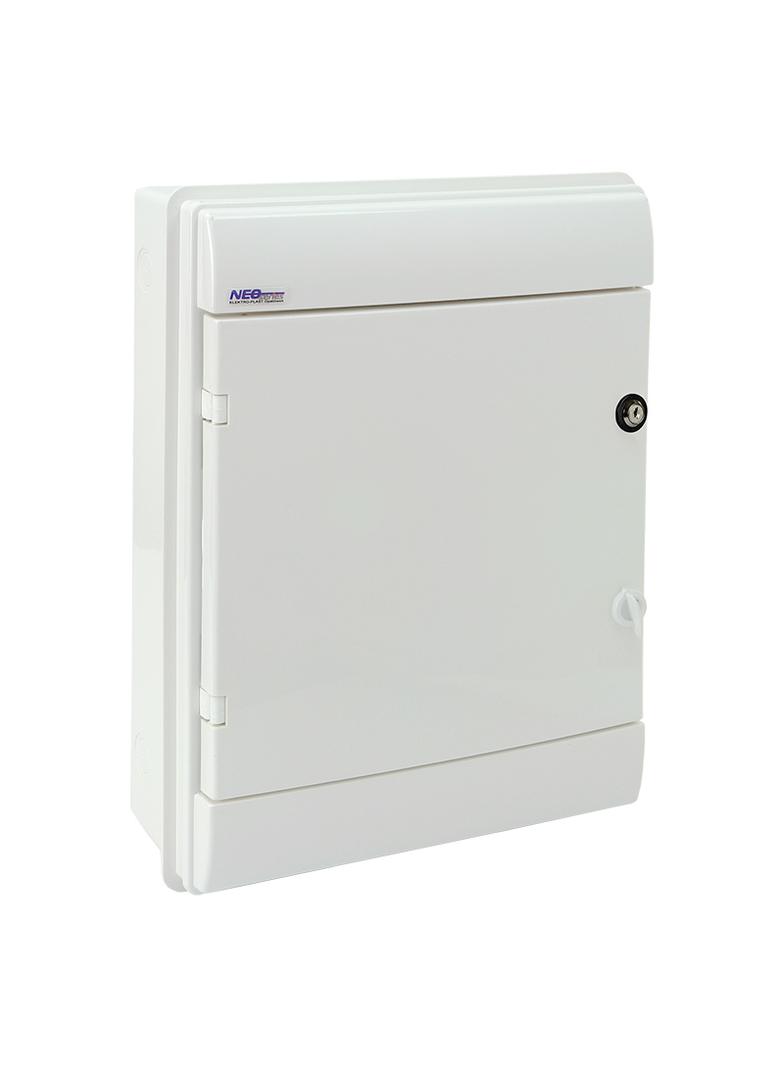

Rozdzielnica hermetyczna natynkowa 2x12 IP65 RHp-24/ZB 36.242 OPATÓWEK

The RHp “NEO” series hermetic flush-mounted switchboards with an IP65 protection rating are suitable for industrial applications. They are equipped with a TH35 rail and N and PE terminal blocks as standard. The IP rating in the RH “NEO” switchboard is ensured by two types of sealing: one within the enclosure and the front cover, and one additional seal for the cover and glass. The front of the switchboard has a door, either transparent or matching the enclosure color. The door can be opened to the left or right by turning the hinges to the appropriate side, and can be locked using a metal lock with a key. The RHp “NEO” series products are available in the following basic versions: – RHp-8, RHp-12, RH-18 – single-row – RH24 – double-row. They come in white enclosures and transparent doors. Switchboard versions with a metal key lock are marked with the letter – Z. White doors for the basic version of the housing (white) are marked with the letter – B. Grey versions are marked with the letter – S. Technical characteristics: – made of ABS material resistant to high temperatures up to 960°C (hot wire test – applies to the terminal strip) – operational stability from -25°C to +60°C – impact resistance (IK 07 grade) – possibility of sealing the door
