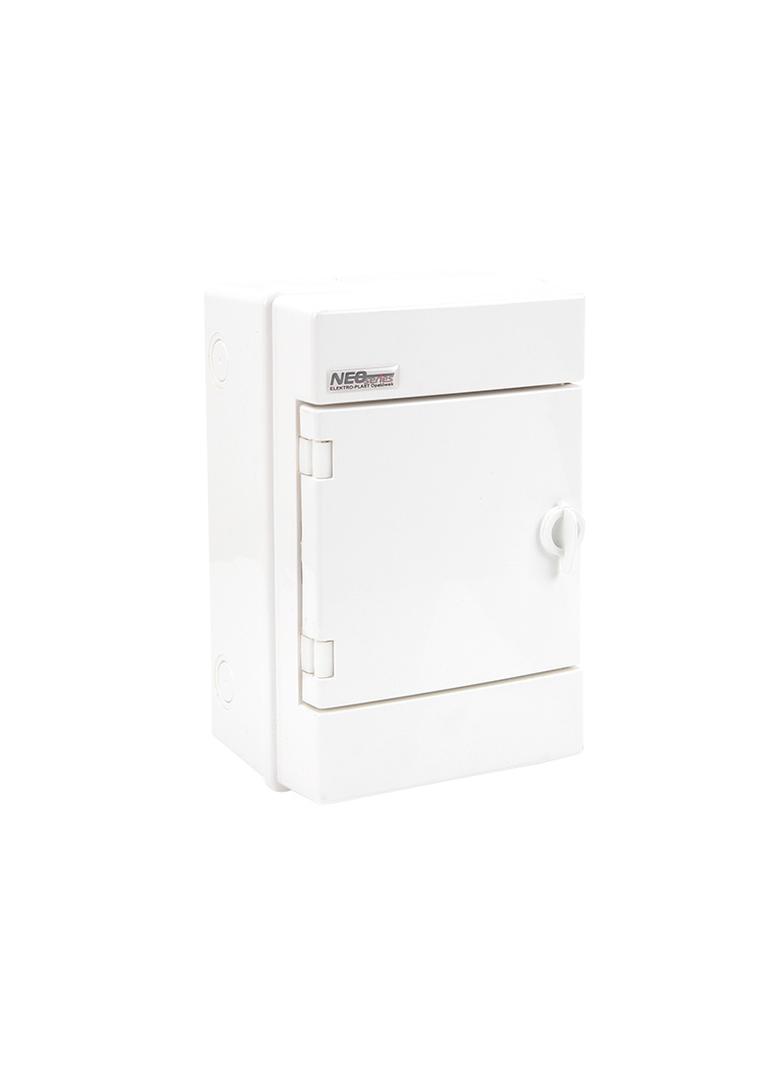

Rozdzielnica hermetyczna natynkowa 1x4 IP65 500VAC/1000VDC RH-4/B (białe drzwi) 36.03 OPATÓWEK

The RH “NEO” series hermetic switchboards with an IP65 degree of protection are suitable for use in industrial buildings. They are equipped with a TH35 rail and N and PE terminal blocks as standard. The IP rating in the RH “NEO” switchboard is ensured by two types of sealing: one within the enclosure and the front cover, and an additional seal for the cover and glass. The front of the switchboard has a door, either transparent or matching the enclosure color. The door can be opened to the left or right by turning the hinges to the appropriate side, and can be locked using a metal lock with a key. The basic version of the RH “NEO” series products is available in: – RH 4, RH 6, RH 12, RH 18 – single-row – RH 24, RH 36 – double-row – RH 36, RH 54 – three-row. They have white enclosures and transparent doors. The basic version of the switchboards can be configured (connected) according to the customer’s needs or are listed in the table on page 20. A special connector ensures aesthetics and airtight connection. Markings: Switchboard versions with a metal key lock are marked with the letter – Z. White doors for the basic version of the housing (white) are marked with the letter – B. Gray versions are marked with the letter – S. Technical characteristics: – made of ABS plastic resistant to high temperatures up to 960°C (hot wire test – applies to the terminal strip) – operational stability from -25°C to +60°C – impact resistance (IK 07 grade) – possibility of sealing the door
