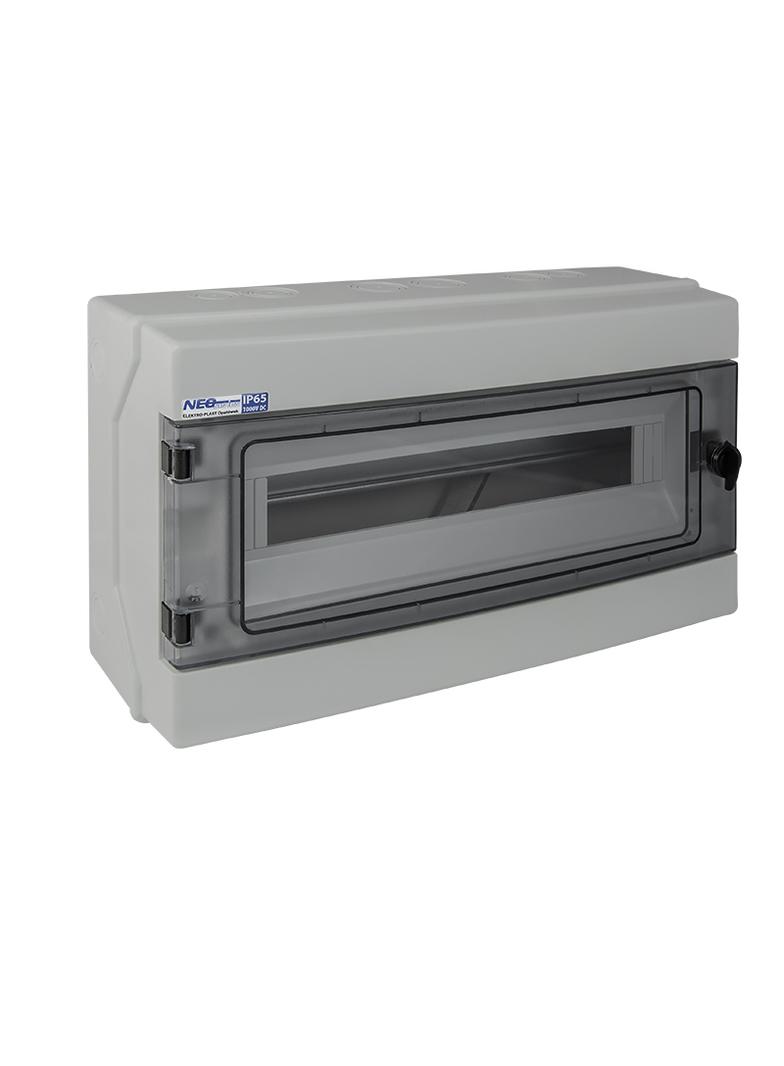

Rozdzielnica hermetyczna natynkowa 1x18 IP65 500VAC/1000VDC RH-18S 36.718 OPATÓWEK

The RH “NEO” series hermetic switchboards with an IP65 degree of protection are suitable for use in industrial and commercial buildings. They are equipped with a TH35 rail and N and PE terminal strips as standard. The IP rating in the RH “NEO” switchboard is ensured by two types of sealing: one within the enclosure and the front cover, and an additional seal for the cover and glass. The front of the switchboard has a door, either transparent or the same color as the enclosure. The door can be opened to the left or right by turning the hinges to the appropriate side, and can be locked using a metal lock with a key. The RH “NEO” series products in the basic version are available: RH-4, RH-6, RH-12, RH-18 – single-row, RH-24, RH-36 – double-row, RH-36, RH-54 – three-row, RH-72 – four-row. The basic version switchboards can be configured (combined) according to the customer’s needs, a special connector ensures aesthetics and airtight connection. Markings: Switchboard versions with a metal key lock are marked with the letter – Z. White doors for the basic version of the housing (white) are marked with the letter – B. Gray versions are marked with the letter – S. Technical characteristics: – made of ABS plastic resistant to high temperatures up to 960°C (hot wire test – applies to the terminal strip) – operational stability from -25°C to +60°C – impact resistance (IK07 grade) – possibility of sealing the door
