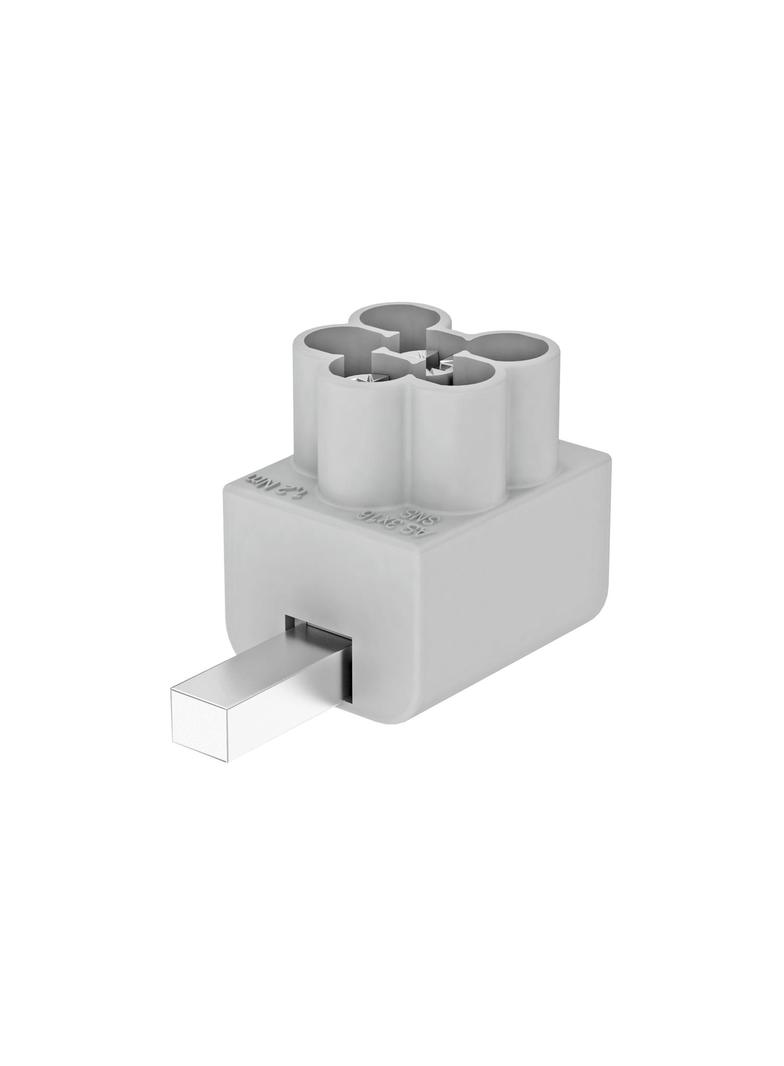

AS 3x16, Złącze do ograniczników

Connection terminal type: AS 3 × 16

Connection cross-section: 3 × 1.5 – 16 mm² rigid/ multiple strands

3 × 1.5 – 10 mm² fine-wire/with wire end sleeve

Stripping length: 16 mm

Rec. tightening torque: 1.2 Nm

Nominal current: 50 A

Width: 17.5 mm (1 PU)

For EMC-optimised V through-wiring to IEC 60364-5-53 (VDE 0100-534).
