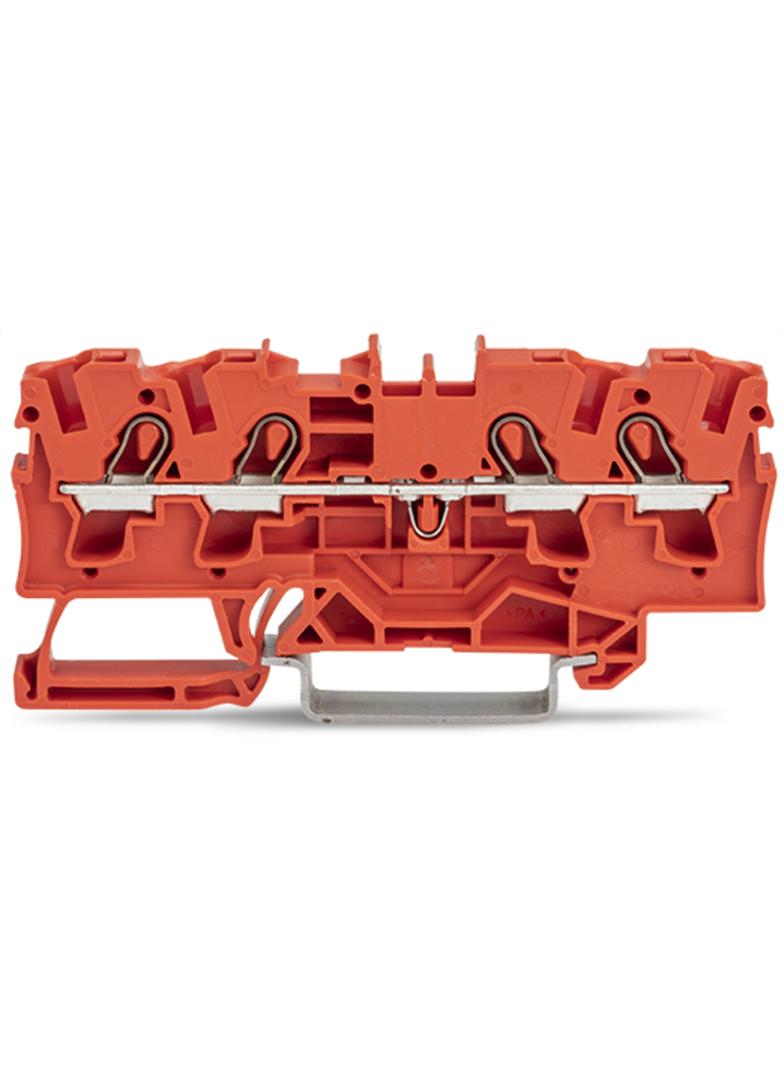

złączka przelotowa 4-przewodowa; 4 mm²; do zastosowań Ex e II; opis z boku i na środku; na szynę TS 35 × 15 i 35 × 7,5; Push-in CAGE CLAMP®; 4,00 mm²; czerwony
Kraj pochodzenia:
Niemcy
Numer katalogowy:
2004-1403
ETIM:
EC000897
Prąd znamionowy In:
32A
Przekrój przyłączanego przewodu wielożyłowego:
0.5mm² - 4mm²
Przekrój przyłączanego przewodu jednodrutowego:
1.6mm² - 1.6mm²
Przekrój przyłączanego przewodu linkowego z końcówką tulejkową:
0.75mm² - 2.5mm²
Przekrój przyłączanego przewodu linkowego bez końcówki tulejkowej:
0.5mm² - 6mm²
Napięcie znamionowe:
800V
Wewnętrzne piętra zmostkowane:
Nie
Wymagana płytka zamykająca:
Tak
Wykonanie przeciwwybuchowe Ex-e - potwierdzone:
Tak
Głębokość:
32.9mm
Wysokość:
78.7mm
Szerokość:
6.2mm
Zakres temperatur pracy:
105°C - 105°C
Materiał elementu izolacyjnego:
Tworzywo termoplastyczne
Liczba zacisków na poziom:
4
Liczba poziomów:
1
Rodzaj połączenia elektrycznego 2:
Zacisk sprężynowy
Rodzaj połączenia elektrycznego 1:
Zacisk sprężynowy
Kolor:
Czerwony
Sposób montażu:
Szyna montażowa DIN TH-35 mm
Klasa palności materiału izolacyjnego zgodnie z UL94:
