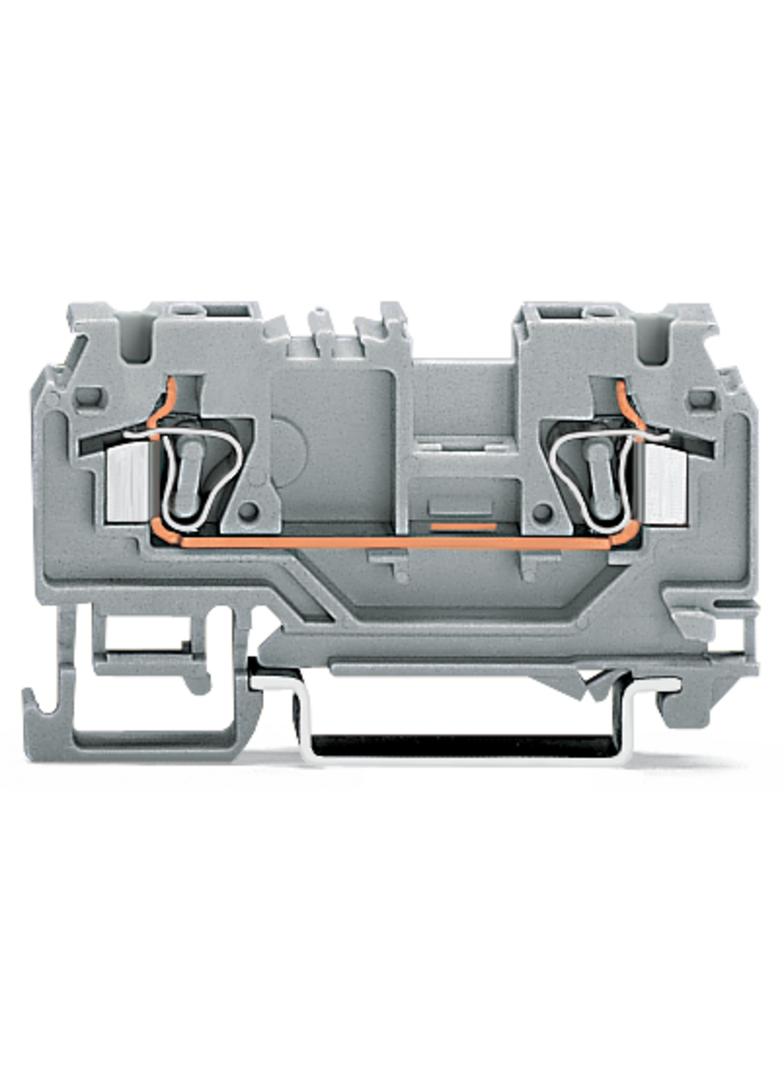

złączka przelotowa 2-przewodowa; 4 mm²; z otworem pomiarowym; bez szyny ekranowej; opis na środku; na szynę TS 35 × 15 i 35 × 7,5; CAGE CLAMP®; 4,00 mm²; szary
Kraj pochodzenia:
Polska
Numer katalogowy:
880-901/999-940
ETIM:
EC000897
Prąd znamionowy In:
25A
Przekrój przyłączanego przewodu wielożyłowego:
0.08mm² - 4mm²
Przekrój przyłączanego przewodu jednodrutowego:
0.08mm² - 4mm²
Przekrój przyłączanego przewodu linkowego z końcówką tulejkową:
0.08mm² - 2.5mm²
Przekrój przyłączanego przewodu linkowego bez końcówki tulejkowej:
0.08mm² - 4mm²
Napięcie znamionowe:
800V
Wewnętrzne piętra zmostkowane:
Nie
Wymagana płytka zamykająca:
Tak
Wykonanie przeciwwybuchowe Ex-e - potwierdzone:
Nie
Głębokość:
29mm
Wysokość:
58.5mm
Szerokość:
5mm
Zakres temperatur pracy:
105°C - 105°C
Materiał elementu izolacyjnego:
Tworzywo termoplastyczne
Liczba zacisków na poziom:
2
Liczba poziomów:
1
Rodzaj połączenia elektrycznego 2:
Zacisk sprężynowy
Rodzaj połączenia elektrycznego 1:
Zacisk sprężynowy
Kolor:
Szary
Sposób montażu:
Szyna montażowa DIN TH-35 mm
Klasa palności materiału izolacyjnego zgodnie z UL94:
